Blade Digtial Caliper
Features:

Thin jaws as thin as knife blade can easily reach narrow grooves for measurement.

The measurement accuracy of the inside jaws can accord with DIN862

Specifications:

Digital Type

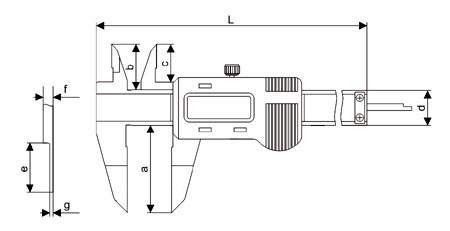

Measuring Range Order No. Resolution Limit Error L a b c d e f g
0-150mm 111-211 0.01mm ±0.02mm 238 40 21 16 16 20 3.2 0.7
0-200mm 111-212 0.01mm ±0.03mm 286 50 24 19 16 20 3.6 0.7
0-300mm 111-213 0.01mm ±0.04mm 400 60 25 20 17 20 3.8 1



Vernier Type

Measuring Range Order No. Resolution Limit Error L a b c d e f g
0-150mm 141-211 0.02mm ±0.02mm 236 40 21 16 16 20 3.2 0.7
0-200mm 141-212 0.02mm ±0.03mm 286 50 24 19 16 20 3.6 0.7
0-300mm 141-213 0.02mm ±0.04mm 400 60 25 20 17 20 3.8 1
