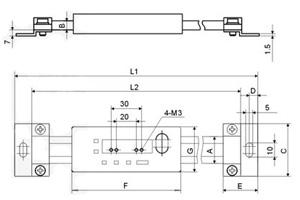

Digital Scale Units(Horizontal Type)
Features:
Designed to be installed on the machines and fixtures to measyre the axial movement.
Can be connected with large LCD display unit easy reading.
Zero-setting at any position.
Data output.
Specifications:
| Measuring Range | Order No. | Resolution | Limit Error |
| 100mm(4″) | 812-100 | 0.01mm(.0005″) | ±0.02mm |
| 150mm(6″) | 812-101 | 0.01mm(.0005″) | ±0.03mm |
| 200mm(8″) | 812-102 | 0.01mm(.0005″) | ±0.03mm |
| 300mm(12″) | 812-103 | 0.01mm(.0005″) | ±0.04mm |
| 400mm(16″) | 812-104 | 0.01mm(.0005″) | ±0.05mm |
| 500mm(20″) | 812-105 | 0.01mm(.0005″) | ±0.05mm |
| 600mm(24″) | 812-106 | 0.01mm(.0005″) | ±0.08mm |
| 700mm(28″) | 812-107 | 0.01mm(.0005″) | ±0.08mm |
| 800mm(32″) | 812-108 | 0.01mm(.0005″) | ±0.10mm |
| 900mm(36″) | 812-109 | 0.01mm(.0005″) | ±0.10mm |
| 1000mm(40″) | 812-110 | 0.01mm(.0005″) | ±0.10mm |
| 1200mm(50″) | 812-112 | 0.01mm(.0005″) | ±0.12mm |
| 1500mm(60″) | 812-115 | 0.01mm(.0005″) | ±0.14mm |
| 2000mm(80″) | 812-120 | 0.01mm(.0005″) | ±0.20mm |
